交互式矢量图图形用户界面
作者：匿名 发表日期：2016年12月15日，星期四
随着假期临近，我想展示一个轻松愉快的功能演示可能不错；你可以用它来在寒冷的冬夜为亲友带来欢乐。本周的博客文章展示了如何使用简单的 widget_window 来创建一个交互式的 vector 动画。代码分为四个部分：VectorBlog、VectorBlog_Event、VectorBlogMouseEvent 和 VectorBlogVectorBuilder。VectorBlog 创建 widget 本身并初始显示矢量信息。VectorBlog_Event 运行基础 widget 的事件。这主要是 widget 的关闭。VectorBlogMouseEvent 是 widget 窗口记录鼠标位置的机制。最后但同样重要的是，VectorBlogVectorBuilder 构建包含矢量水平和垂直分量的两个矩阵。运行以下代码时，会记录光标位置，创建一个距离加权的矢量图，然后将生成的图像显示在 widget 窗口中。这段代码中唯一棘手的部分在于有两个事件处理程序：一个用于基础 widget，另一个用于 widget 窗口中的鼠标事件。每次移动光标时，还必须维护和操作所显示图像的对象引用。

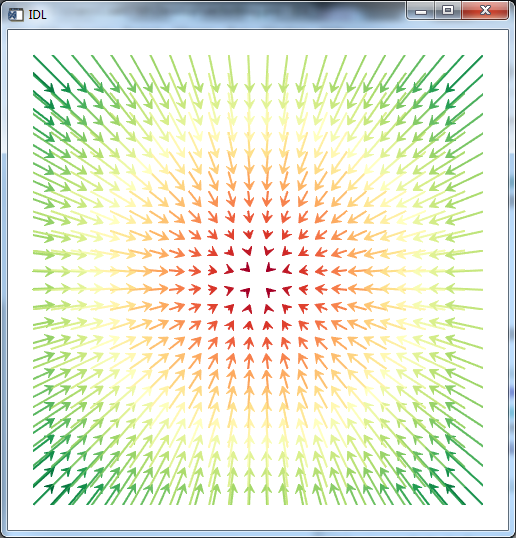

图 1：矢量图示例
;+
; Build the vecort components
; This is distance weighting
;-
pro VectorBlogVectorBuilder, dims = dims, pt = pt, u = u, v = v
compile_opt IDL2
; Get all the x locations
xs = findgen(dims[0])
xs = xs#replicate(1,dims[1])
; Get all the y locations
ys = findgen(dims[1])
ys = transpose(ys# replicate(1,dims[0]))
; Build the horizontal components
u = pt[0] - xs
; Build the vertical components
v = pt[1] - ys
end
;+
; The event handler called when the mouse is moved.
;-
FUNCTION VectorBlogMouseEvent, win, x, y, keymods
COMPILE_OPT idl2
; Set the window
win.SetCurrent
; Set the scale factor
sc = .05
; Get the size of the window
dims = win.DIMENSIONS * sc
; Get the vecotr information
VectorBlogVectorBuilder, dims = dims, pt = [x*sc,y*sc], $
u = u , v = v
; Build the vecotr image
vector = vector(u,v,xrange=[0,dims[0]], yrange=[0,dims[1]], /current, AUTO_COLOR=1, $
RGB_TABLE=73, AXIS_STYLE = 0, LENGTH_SCALE=1.5, ARROW_THICK =3)
; Delete the old image
win.uvalue.delete
; Display the new image
win.uvalue = vector
END
;+
; The event handler for the widget
;-
pro VectorBlog_Event, ev
compile_opt IDL2
end
pro VectorBlog
compile_opt IDL2
; Setup the widget
tlb = widget_base()
wwindow = widget_window(tlb, MOUSE_MOTION_HANDLER='VectorBlogMouseEvent', $
XSIZE=500, YSIZE=500)
widget_control, tlb, /REALIZE
; Set the scale factor
sc = .05
; Get infomation about the widget window
WIDGET_CONTROL, wwindow, GET_VALUE=w
dims = w.DIMENSIONS * sc
; Build the vecotr infomation
VectorBlogVectorBuilder, dims = dims, pt = [(dims[0])/2.,(dims[1])/2.], $
u = u , v = v
; Display the vectors
vector = vector(u,v,xrange=[0,dims[0]], yrange=[0,dims[1]], /current, AUTO_COLOR=1, $
RGB_TABLE=73, AXIS_STYLE = 0, LENGTH_SCALE=1.5, ARROW_THICK =3)
; Record the vector object
w.uvalue = vector
WIDGET_CONTROL, tlb, SET_UVALUE=w
; Start the task manager
XMANAGER, 'VectorBlog', tlb
end
