Creating GOES-16 ABI Aerosol Detection Visualizations of the Marshall Fire

David Starbuck Monday, May 2, 2022

The fall of 2021 was extremely dry in Colorado, and on December 30th when category 2 hurricane force winds hit the area, an urban wildfire erupted that led to the largest loss of property in Colorado history. The Marshall Fire destroyed over one thousand structures in the cities of Superior and Louisville, and in unincorporated Boulder County. Residents in the area often had only minutes to evacuate, many fleeing with only the clothes on their backs.

Along with the 1,000 plus structures that were lost, many other homes and businesses experienced severe smoke damage. While the extreme winds and prolonged drought made the conditions ideal for uncontrollable fire behavior, residents are now facing the realization that this situation might not have been a rare instance of a perfect storm. In the aftermath of the Marshall Fire, the Colorado Front Range, with a large population near a fire climax ecosystem, is coming to terms with the real possibility of endemic wildfires and a fire season that is now year-round.

Using Imagery to Study Wildfires

Geospatial imagery can be used to study pre-fire conditions, monitor conditions during a fire and evaluate damage after. Data from the Advanced Baseline Imager (ABI), a sensor on the L3Harris built GOES-16 platform, allows us to study all types of weather phenomena at high temporal, spatial and spectral resolution. Certain bands highlight smoke, others different sized aerosols, and others fire itself. The more people who can access, analyze and visualize ABI data, the more we can learn from these types of events and how they impact people’s lives, health, air travel safety, etc.

ABI datasets have a direct read out link to NOAA and facilities like those at the University of Wisconsin and other sites for operational use in forecasting but are also publicly available via AWS S3 buckets. This blog post provides code examples and demonstrates how anyone can use the IDL® programming language to pull GOES-16 ABI data from AWS S3 for this date, create RGB images that show smoke dynamics and extents, and create an Aerosol Detection data product.

Step-by-Step Guide To Access ABI Data

The first step to access ABI data is pulling the data from AWS S3 using the IDLnetURL object in IDL. I used the AWS Amazon S3 API guide to figure out how to fill out the IDLnetURL parameters – Amazon S3 - Amazon Simple Storage Service. Using this guide, I wrote the following routine to query the Goes-16 S3 data.





    function dj_goes_16_s3_query, prefix=prefix, print=print

  compile_opt idl2



  s3UrlObject = obj_new('idlneturl')

  bucket = 'noaa-goes16'

  region = 'us-east-1'

  s3UrlObject.setProperty, url_host = bucket + '.s3.' + region + '.amazonaws.com'



  urlQuery = 'list-type=2&delimiter=/'



  if keyword_set(prefix) then begin

    urlQuery = urlQuery + '&prefix='+prefix

  endif







  keyList=list()

  dateList = list()

  sizeList = list()



  gotAll = 0

  startAfter = ''

  initUrlQuery = urlQuery

  while (gotAll eq 0) do begin

    urlQuery = initUrlQuery

    if startAfter ne '' then begin

      urlQuery = urlQuery + '&start-after=' + startAfter

      startAfter = ''

    endif



    s3urlObject.setproperty, url_query= urlQuery

    result = s3urlObject.get()



    parsedData = xml_parse(result)



    if ((parsedData['ListBucketResult']).haskey('Contents')) then begin

      contents = ((parsedData['ListBucketResult'])['Contents'])

      for  awsKeyIndex=0L, n_elements(contents)-1 do begin

        keyList.add, (contents[awsKeyIndex])['Key']

        dateList.add, (contents[awsKeyIndex])['LastModified']

        sizeList.add, (contents[awsKeyIndex])['Size']

      endfor

      if keyword_set(print) then begin

        outArray = strarr(3,n_elements(keyList))

        outArray[0,*] = transpose(keyList.toArray())

        outArray[1,*] = transpose(dateList.toArray())

        outArray[2,*] = transpose(sizeList.toArray())

        print, '---------------------------------'

        print, 'Key, Date, Size

        print, '---------------------------------'

        print, outArray

      endif

    endif



    prefixList= list()

    if ((parsedData['ListBucketResult']).haskey('CommonPrefixes')) then begin

      commonPrefixes = ((parsedData['ListBucketResult'])['CommonPrefixes'])

      if n_elements(commonPrefixes) eq 1 then begin

        prefixList.add, commonPrefixes['Prefix']

      endif else begin

        for prefixKeyIndex=0L, n_elements(commonPrefixes)-1 do begin

          prefixList.add, (commonPrefixes[prefixKeyIndex])['Prefix']

        endfor

      endelse

      if keyword_set(print) then begin

        print, '---------------------------------'

        print, 'Prefixes'

        print, '---------------------------------'

        print, transpose(prefixList.toArray());objListStructor['prefixlist']

      endif

    endif



    if ((parsedData['ListBucketResult'])['IsTruncated'] eq 'true') then begin

      startAfter = keyList[-1]

    endif else begin

      gotAll = 1

    endelse



  endwhile



  returnHash = hash()

  returnhash['keylist'] = keyList

  returnhash['datelist'] = dateList

  returnhash['sizelist'] = sizeList

  returnhash['prefixlist'] = prefixList



  obj_destroy, s3UrlObject



  return, returnhash

end

In this routine, I used “noaa-goes16” as the bucket and “us-east-1” as the region.





         s3UrlObject = obj_new('idlneturl')

  bucket = 'noaa-goes16'

  region = 'us-east-1'

  s3UrlObject.setProperty, url_host = bucket + '.s3.' + region + '.amazonaws.com'

I used “list-type=2” with the “delimiter=/” as parameters to the “url_query” property. Running the query returns a list of the keys (files) and prefixes (subdirectories) available in the top level of the bucket. Without the delimiter, the response that all the files in the bucket creates a very long list.





          s3urlObject.setproperty, url_query='list-type=2&delimiter=/'

  result = s3urlObject.get()

The response will be an XML object which can be parsed using the xml_parse routine. After that the keys and prefixes can be extracted.





    parsedData = xml_parse(result)

Running “dj_goes_16_s3_query” without any prefix specified, will produce the following result:





        IDL> topLevelQuery = dj_goes_16_s3_query(/print)

---------------------------------

Key, Date, Size

---------------------------------

Beginners_Guide_to_GOES-R_Series_Data.pdf 2021-04-02T17:12:02.000Z 5887019

Version1.1_Beginners_Guide_to_GOES-R_Series_Data.pdf 2021-03-23T15:49:55.000Z 3578396

index.html 2021-09-27T19:48:14.000Z 32357

---------------------------------

Prefixes

---------------------------------

ABI-L1b-RadC/

ABI-L1b-RadF/

ABI-L1b-RadM/

ABI-L2-ACHAC/

ABI-L2-ACHAF/

ABI-L2-ACHAM/

ABI-L2-ACHTF/

ABI-L2-ACHTM/

ABI-L2-ACMC/

ABI-L2-ACMF/

ABI-L2-ACMM/

…

SUVI-L1b-Fe284/

I then used the “prefix” parameter to query the keys and prefixes under a specific prefix. For example, I used the following call to view the prefixes available under “ABI-L1b-RadC/”:



IDL> productTypeLevelQuery = dj_goes_16_s3_query(/print, prefix='ABI-L1b-RadC/')

---------------------------------

Prefixes

---------------------------------

ABI-L1b-RadC/2000/

ABI-L1b-RadC/2017/

ABI-L1b-RadC/2018/

ABI-L1b-RadC/2019/

ABI-L1b-RadC/2020/

ABI-L1b-RadC/2021/

ABI-L1b-RadC/2022/

I continued this process with further subdirectories and found the following structure for each key:



<Product Type>/<year>/<day>/<hour>/<filename.nc>

I used the GOES-16: True Color Recipe — Unidata Python Gallery tutorial as a guide on how to generate RGB images from the GOES-16 data. According to this tutorial, the Level 2 Multichannel formatted data product should be used (ABI-L3-MCIMP). Therefore, I used the following query to determine which files are available for that type for the data 12/30/2022:



IDL> hourlevelQuery = dj_goes_16_s3_query(/print, prefix='ABI-L2-MCMIPC/2021/364/17/')

I printed the result and found that the first key available was:



ABI-L2-MCMIPC/2021/364/17/OR_ABI-L2-MCMIPC-M6_G16_s20213641701172_e20213641703545_c20213641704048.nc

I wrote the following routine to download files from the bucket.



function dj_goes_16_s3_download, key, outputdirectory=outputdirectory

  compile_opt idl2



  s3UrlObject = obj_new('idlneturl')

  bucket = 'noaa-goes16'

  region = 'us-east-1'

  s3UrlObject.setProperty, url_host = bucket + '.s3.' + region + '.amazonaws.com'



  fileBaseSplitString = strsplit(key, '/', /EXTRACT)

  fileBaseName = fileBaseSplitString[-1]

  s3urlObject.setProperty, url_path=Key



  if (keyword_set(outputdirectory)) then begin

    outputFilename = filepath(filebasename, ROOT_DIR=outputDirectory)

  endif else begin

    outputFilename = fileBaseName

  endelse



  ;if file already exist, don't re-download it

  if (file_test(outputFilename)) then begin

    objectFile = outputfilename

  endif else begin

    objectFile = s3urlObject.get(filename=outputFileName)

  endelse



  return, objectFile

end

To download a file, I ran “dj_goes_16_s3_download” using “ABI-L2-MCMIPC/2021/364/17/OR_ABI-L2-MCMIPC-M6_G16_s20213641701172_e20213641703545_c20213641704048.nc” as the key:



IDL>objectFile = dj_goes_16_s3_download('ABI-L2-MCMIPC/2021/364/17/OR_ABI-L2-MCMIPC-M6_G16_s20213641701172_e20213641703545_c20213641704048.nc')

The GOES-16 data are NetCDF and can be parsed using the ncdf_parse.



data = ncdf_parse(objectFile, /read_data)



center_lon = data['geospatial_lat_lon_extent', $

        'geospatial_lon_nadir', '_DATA']

xscale = data['x', 'scale_factor', '_DATA']

xoffset = data['x', 'add_offset', '_DATA']

x_radians = data['x', '_DATA']*DOUBLE(xscale) + xoffset

yscale = data['y', 'scale_factor', '_DATA']

yoffset = data['y', 'add_offset', '_DATA']

y_radians = data['y', '_DATA']*DOUBLE(yscale) + yoffset

I used the following commands to get the red, blue and true green values from the data. I set the maximum value to 2,000 when scaling it because I looked at the histograms and found that most of the data resided below that value.



redBand = bytscl(data['CMI_C02', '_DATA'], max=2000)

greenBand = bytscl(data['CMI_C03', '_DATA'], max=2000)

blueBand = bytscl(data['CMI_C01', '_DATA'], max=2000)



trueGreen = bytscl(0.45*redBand + 0.1*greenBand + 0.45*blueBand)



bandDims = size(redBand, /DIMENSIONS)

rgbArray = fltarr(3,bandDims[0],bandDims[1])

rgbArray[0,*,*] = redBand

rgbArray[1,*,*] = trueGreen

rgbArray[2,*,*] = blueBand

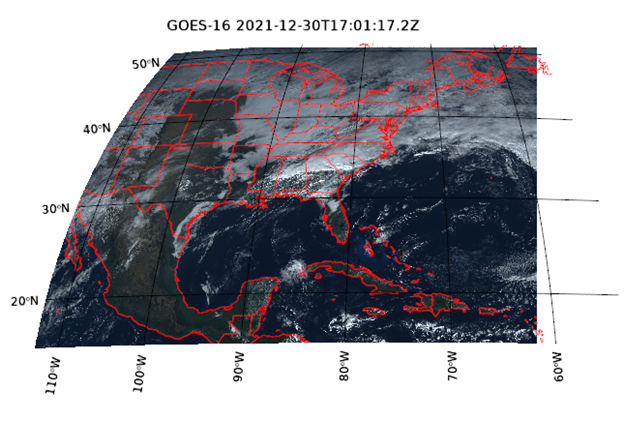

I then used the image function to display the data:



windowDimX = 800

windowDimY = 450

margin = [.2,.2,.1,.1]

i = IMAGE(bytscl(rgbArray), x_radians, y_radians, $

 MAP_PROJECTION='GOES-R', $

 margin=margin,    $

 GRID_UNITS='meters', $

 CENTER_LONGITUDE=center_lon, $

 DIMENSIONS=[windowDimX,windowDimY], $

 TITLE='GOES-16 '+ data['time_coverage_start', '_DATA'])

mg = i.MapGrid

mg.label_position = 0

mg.clip = 0

mc = MAPCONTINENTS(/COUNTRIES, COLOR='red')

mc = MAPCONTINENTS(/US, COLOR='red')

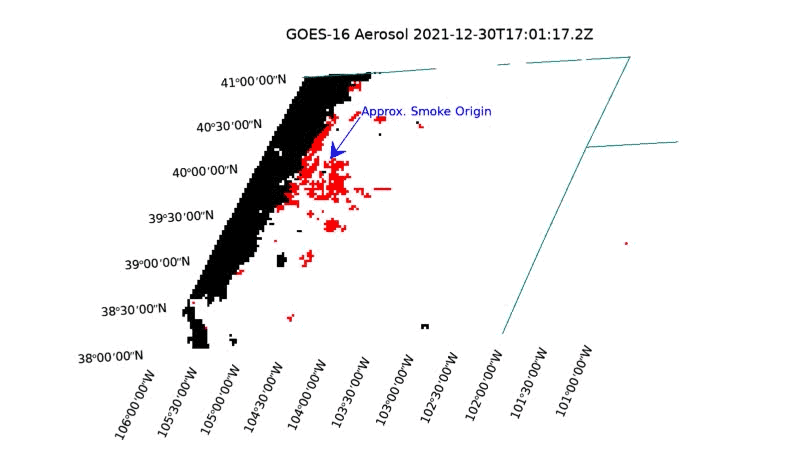

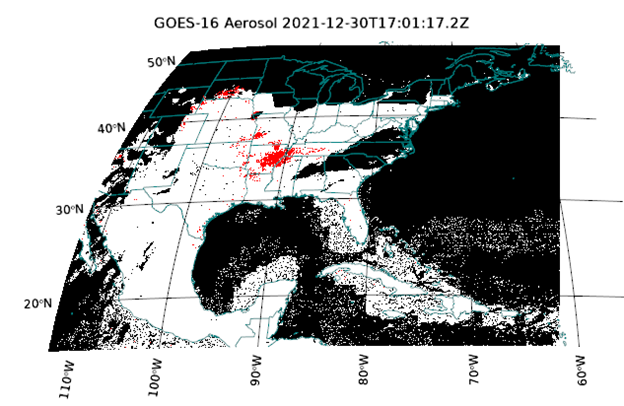

I then followed a similar procedure to display the aerosol detection. The aerosol data is a byte array with three values (0, 1, 255). I added a colortable to set 0 to black, 1 to red and 255 to white.



objectFile = dj_goes_16_s3_download('ABI-L2-ADPC/2021/364/17/OR_ABI-L2-ADPC-M6_G16_s20213641701172_e20213641703545_c20213641705442.nc')

data = ncdf_parse(objectFile, /read_data)

center_lon = data['geospatial_lat_lon_extent', $

   'geospatial_lon_nadir', '_DATA']

xscale = data['x', 'scale_factor', '_DATA']

xoffset = data['x', 'add_offset', '_DATA']

x_radians = data['x', '_DATA']*DOUBLE(xscale) + xoffset

yscale = data['y', 'scale_factor', '_DATA']

yoffset = data['y', 'add_offset', '_DATA']

y_radians = data['y', '_DATA']*DOUBLE(yscale) + yoffset

aerosol = data['Aerosol', '_DATA']

rgbTable = bytarr(3,255)

rgbTable[*,0] = 255

rgbTable[0,1] = 255

rgbTable[1,1] = 0

rgbTable[2,1] = 0

windowDimX = 800

windowDimY = 450

margin = [.2,.2,.1,.1]

i = IMAGE(aerosol, x_radians, y_radians, $

  MAP_PROJECTION='GOES-R', GRID_UNITS='meters', $

  margin=margin, $

  CENTER_LONGITUDE=center_lon, $

  RGB_TABLE=rgbTable, $

  DIMENSIONS=[windowDimX,windowDimY], $

  TITLE='GOES-16 Aerosol '+ data['time_coverage_start', '_DATA'])

The following program is an example program that uses “dj_goes_16_s3_query” and “dj_goes_16_s3_download” to generate an animation of true color images using the GOES-16 data around the Marshall Fire from 17:00-22:00 UTC. If you run this program with the aerosol keyword, it will generate an animation using the Aerosol Detection Goes-16 data product.





    pro dj_example_plot_areosol_goes_aws, aerosol=aerosol



  compile_opt idl2



  windowDimX = 800

  windowDimY = 450

  margin = [.2,.2,.1,.1]



  topLevelQuery = dj_goes_16_s3_query(/print)

  prefixes = (topLevelQuery['prefixlist']).toArray()

  multiChannelIndex = where(strmatch(prefixes,'*ABI-L2-MCMIPC*'))

  aerosolIndex = where(strmatch(prefixes, '*ABI-L2-ADPC*'))

  if keyword_set(aerosol) then begin

    productTypeLevelQuery = dj_goes_16_s3_query(prefix=prefixes[aerosolIndex[0]], /print)

  endif else begin

    productTypeLevelQuery = dj_goes_16_s3_query(prefix=prefixes[multiChannelIndex[0]], /print)

  endelse



  prefixes = (productTypeLevelQuery['prefixlist']).toArray()

  yearIndex = where(strmatch(prefixes,'*2021*'))

  yearLevelQuery = dj_goes_16_s3_query(prefix=prefixes[yearIndex[0]], /print)



  prefixes = (yearLevelQuery['prefixlist']).toArray()

  dayIndex = where(strmatch(prefixes,'*364*'))

  dayLevelQuery = dj_goes_16_s3_query(prefix=prefixes[dayIndex[0]], /print)



  hoursPrefixes = dayLevelQuery['prefixlist']

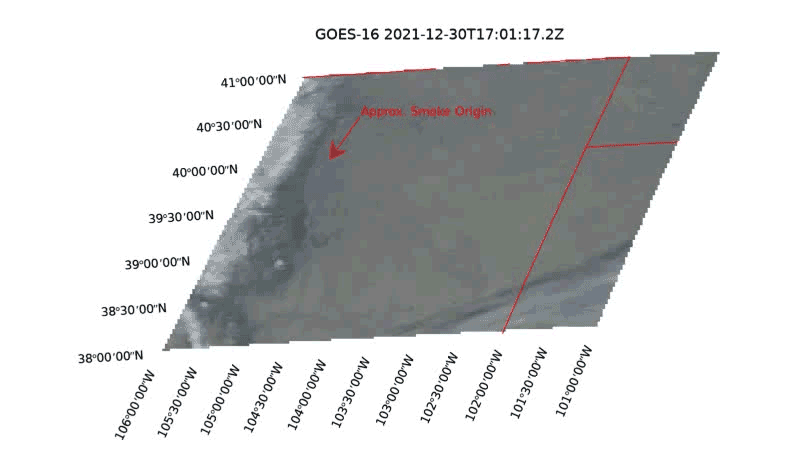

  ;Create video object for projected video

  if keyword_set(aerosol) then begin

    oVid = IDLffVideoWrite('aerosol_projected_output.mp4',FORMAT='mp4')

    vidstream = oVid.AddVideoStream(windowdimx,windowdimy,10)

  endif else begin

    oVid = IDLffVideoWrite('projected_output.mp4',FORMAT='mp4')

    vidstream = oVid.AddVideoStream(windowdimx,windowdimy,10)

  endelse





  ;Store a list of the hours prefixes for

  ;hoursPrefixes = objListStructor['prefixlist']



  for hoursIndex = 17L, 21 do begin



    hourLevelQuery = dj_goes_16_s3_query(prefix=hoursPrefixes[hoursIndex], /print)

    objectKey = (hourLevelQuery['keylist'])



    for objectKeyIndex = 0L, n_elements(objectKey)-1 do begin



      objectFile = dj_goes_16_s3_download(objectKey[objectKeyIndex])



      data = ncdf_parse(objectFile, /read_data)



      print, 'Time start = ', data['time_coverage_start', '_DATA']



      ; Extract the center longitude and radiance data

      center_lon = data['geospatial_lat_lon_extent', $

        'geospatial_lon_nadir', '_DATA']

      ; radiance = data['Rad','_DATA']



      ; Compute the X/Y pixel locations in radians

      xscale = data['x', 'scale_factor', '_DATA']

      xoffset = data['x', 'add_offset', '_DATA']

      x_radians = data['x', '_DATA']*DOUBLE(xscale) + xoffset

      yscale = data['y', 'scale_factor', '_DATA']

      yoffset = data['y', 'add_offset', '_DATA']

      y_radians = data['y', '_DATA']*DOUBLE(yscale) + yoffset



      if (keyword_set(aerosol)) then begin

        aerosol = data['Aerosol', '_DATA']

        smoke = data['Smoke', '_DATA']



        rgbTable = bytarr(3,255)

        rgbTable[*,0] = 255

        rgbTable[0,1] = 255

        rgbTable[1,1] = 0

        rgbTable[2,1] = 0



        if (obj_valid(i)) then begin

          i.setdata, aerosol, x_radians, y_radians

          i.title = 'GOES-16 Aerosol '+ data['time_coverage_start', '_DATA']

        endif else begin

          ; Use the GOES-R (GOES-16) map projection

          i = IMAGE(aerosol, x_radians, y_radians, $

            MAP_PROJECTION='GOES-R', GRID_UNITS='meters', $

            margin=margin, $

            CENTER_LONGITUDE=center_lon, $

            RGB_TABLE=rgbTable, $

            DIMENSIONS=[windowDimX,windowDimY], $

            TITLE='GOES-16 Aerosol '+ data['time_coverage_start', '_DATA'])



          i.limit = [38,-106, 41, -101]

          mg = i.MapGrid

          mg.label_position = 0

          mg.clip = 0

          mg.linestyle = 'none'

          mg.box_axes = 1



          mc = MAPCONTINENTS(/COUNTRIES, COLOR='teal')

          mc = MAPCONTINENTS(/US, COLOR='teal')



          annotationArrow = arrow([-105,-105.1],[40.5,40.05], /DATA,$

            COLOR='blue', $

            /CURRENT)



          t2 = text(-104.995, 40.51,'Approx. Smoke Origin', color='blue', /DATA, font_style=1)

        endelse



        time = ovid.put(vidStream, i.copywindow())

        print, time



      endif else begin

        redBand = bytscl(data['CMI_C02', '_DATA'], max=2000)

        greenBand = bytscl(data['CMI_C03', '_DATA'], max=2000)

        blueBand = bytscl(data['CMI_C01', '_DATA'], max=2000)



        trueGreen = bytscl(0.45*redBand + 0.1*greenBand + 0.45*blueBand)



        bandDims = size(redBand, /DIMENSIONS)

        rgbArray = fltarr(3,bandDims[0],bandDims[1])

        rgbArray[0,*,*] = redBand

        rgbArray[1,*,*] = trueGreen

        rgbArray[2,*,*] = blueBand



        ;Apply squareroot stetch to improve image clarity.

        rgbArray = sqrt(rgbArray/255)*255



        ; Use the GOES-R (GOES-16) map projection

        if obj_valid(i) then begin

          ;skip frame at 2021-12-30T19:31:17.2Z

          if (data['time_coverage_start', '_DATA'] ne '2021-12-30T19:31:17.2Z') then begin

            i.setData, rgbArray, x_radians, y_radians

            i.title = 'GOES-16 '+ data['time_coverage_start', '_DATA']

          endif

        endif else begin

          i = IMAGE(bytscl(rgbArray), x_radians, y_radians, $

            MAP_PROJECTION='GOES-R', $

            margin=margin, $

            GRID_UNITS='meters', $

            CENTER_LONGITUDE=center_lon, $

            DIMENSIONS=[windowDimX,windowDimY], $

            TITLE='GOES-16 '+ data['time_coverage_start', '_DATA'])



          i.limit = [38,-106, 41, -101]

          mg = i.MapGrid

          mg.label_position = 0

          mg.clip = 0

          mg.linestyle = 'none'

          mg.box_axes = 1



          mc = MAPCONTINENTS(/COUNTRIES, COLOR='red')

          mc = MAPCONTINENTS(/US, COLOR='red')



          annotationArrow = arrow([-105,-105.1],[40.5,40.05], /DATA,$

             COLOR='red', $

             /CURRENT)



          t2 = text(-104.995, 40.51,'Approx. Smoke Origin', color='red', /DATA, font_style=1)

        endelse

        ;skip frame at 2021-12-30T19:31:17.2Z

        if (data['time_coverage_start', '_DATA'] ne '2021-12-30T19:31:17.2Z') then begin

          time = ovid.put(vidStream, i.copywindow())

          print, time

        endif

      endelse

    endfor

  endfor

  ovid = 0

end

Thanks for following along. And, be on the lookout for some additional blogs accessing and creating visualizations with GOES, EUMETSAT and other instruments. IDL provides flexible access to complex data and code and it can be shared with colleagues via the IDL Virtual Machine – a free way to run IDL Code! My team specializes in solving tough problems with imagery using ENVI® and IDL and bridging other programming languages. If you have a project we might be able to help with, shoot me an email at GeospatialInfo@NV5.com.
